Advanced Git: Collaborating, undoing committed changes, and branching

Optional self-study content for week 4

Author

Affiliation

Jelmer Poelstra

CFAES Bioinformatics Core, Ohio State University

---

1 Introduction

This page contains optional self-study material if you want to dig deeper into Git. Some of it may also be useful as a reference in case you run into problems while trying to use Git.

• Collaboration with Git: multi-user remote workflows
• Contributing to repositories: Forking & Pull Requests
• Undoing (& viewing) changes that have been committed
• Branching & merging
• Miscellaneous Git

2 Collaboration with Git: multi-user remote workflows

In a multi-user workflow, your collaborator can make changes to the repository (committing to local, then pushing to remote), and you need to make sure that you stay up-to-date with these changes.

Synchronization between your and your collaborator’s repository happens via the remote, so now you will need a way to download changes from the remote that your collaborator made. This happens with the git pull command.

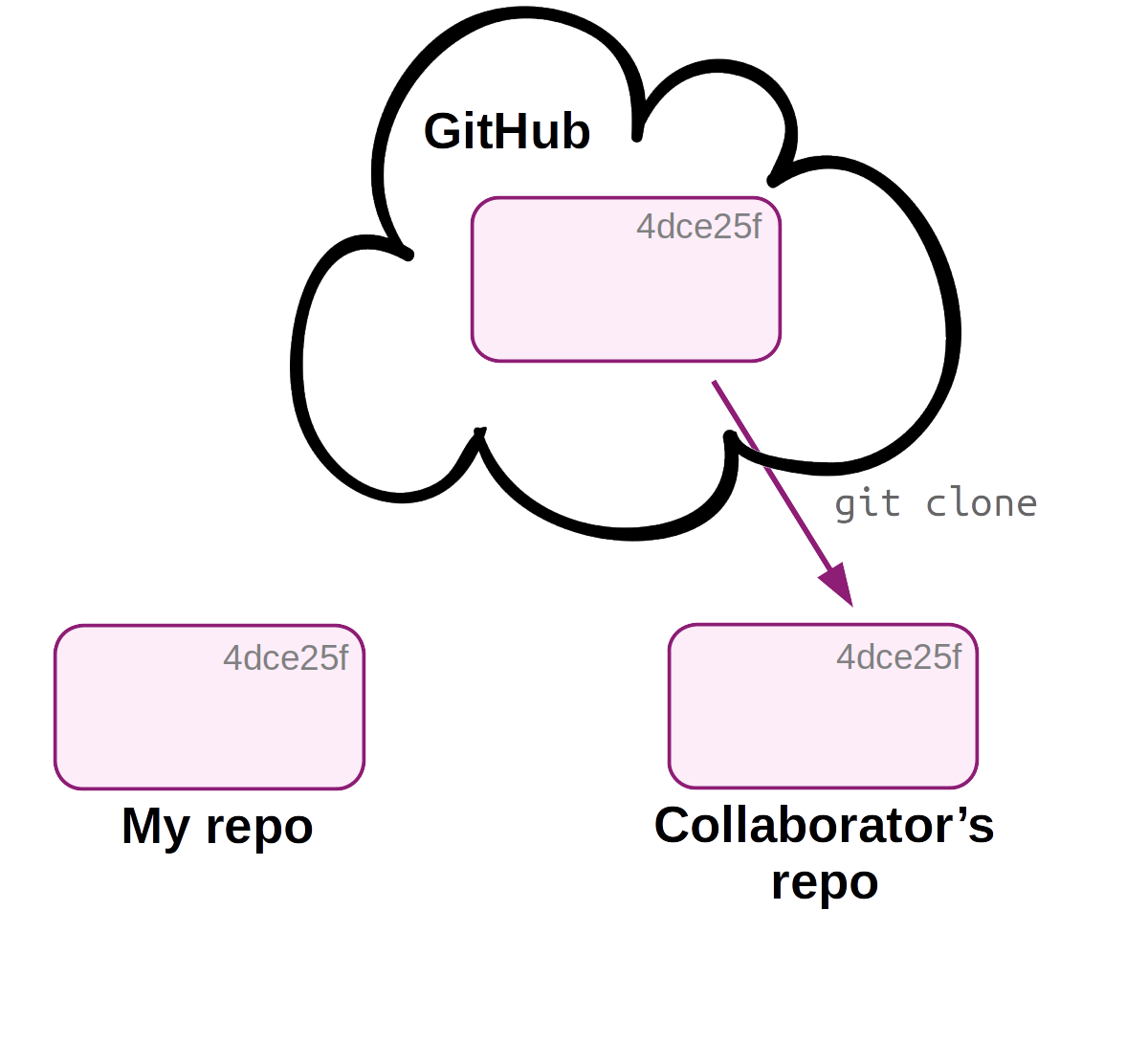

A
First, a second user, your collaborator, downloads (clones) the online repo. They should also receive admin rights on the repo (not shown - done on GitHub).

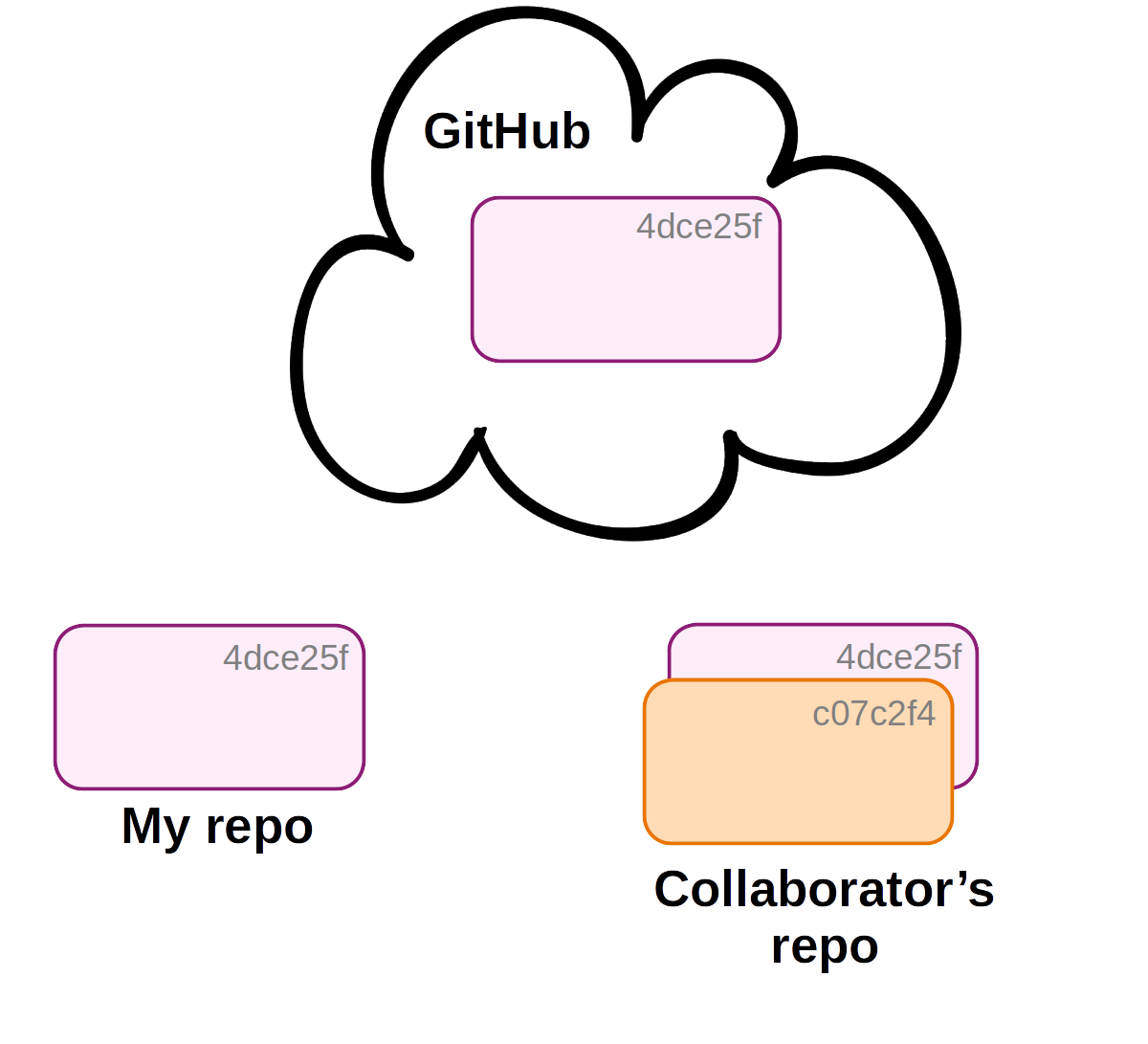

B
Then, your collaborator commits changes to their local copy of the repository.

---

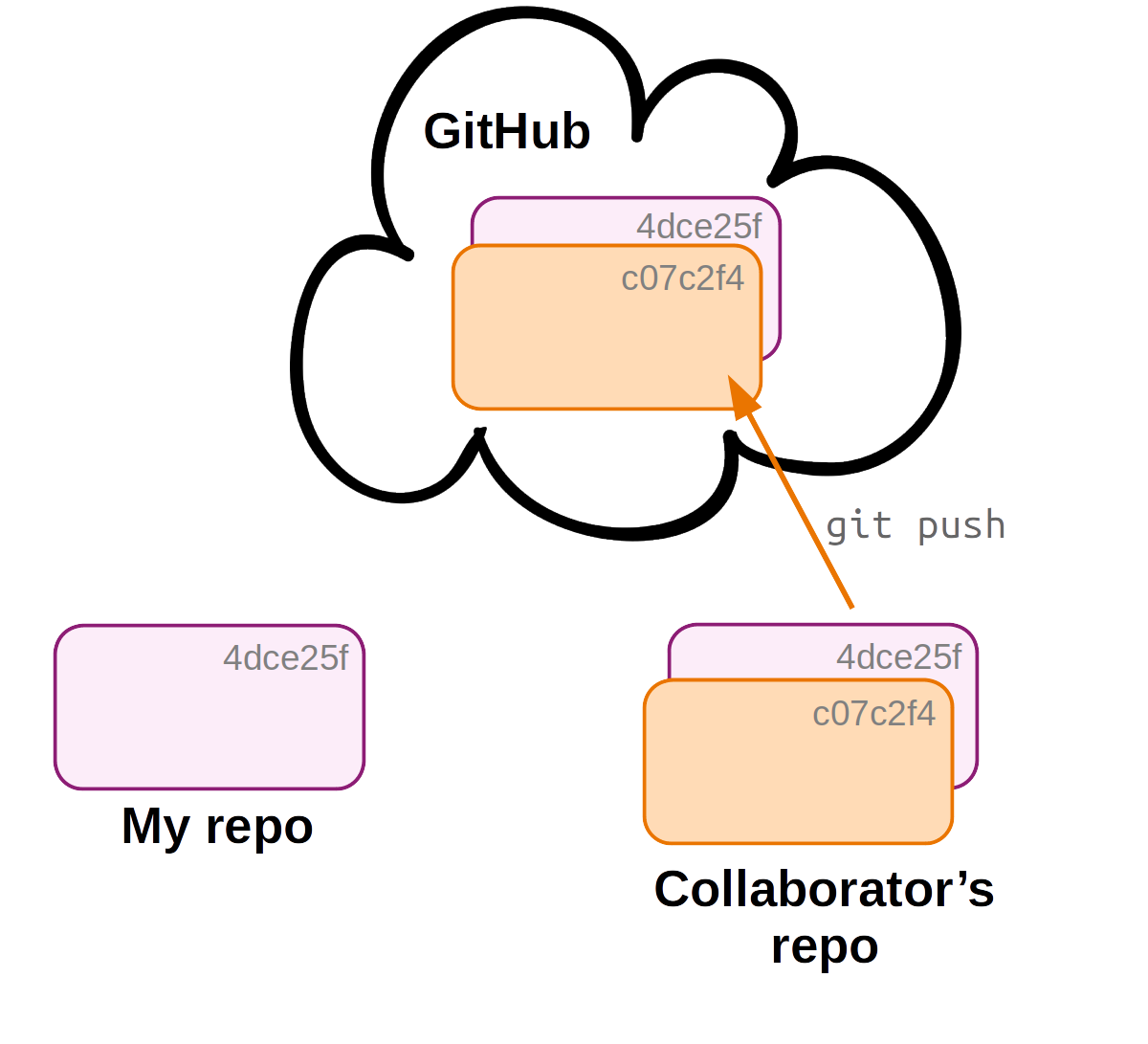

C
Before you can receive these changes, your collaborator will need to push their changes to the remote, which you can access too.

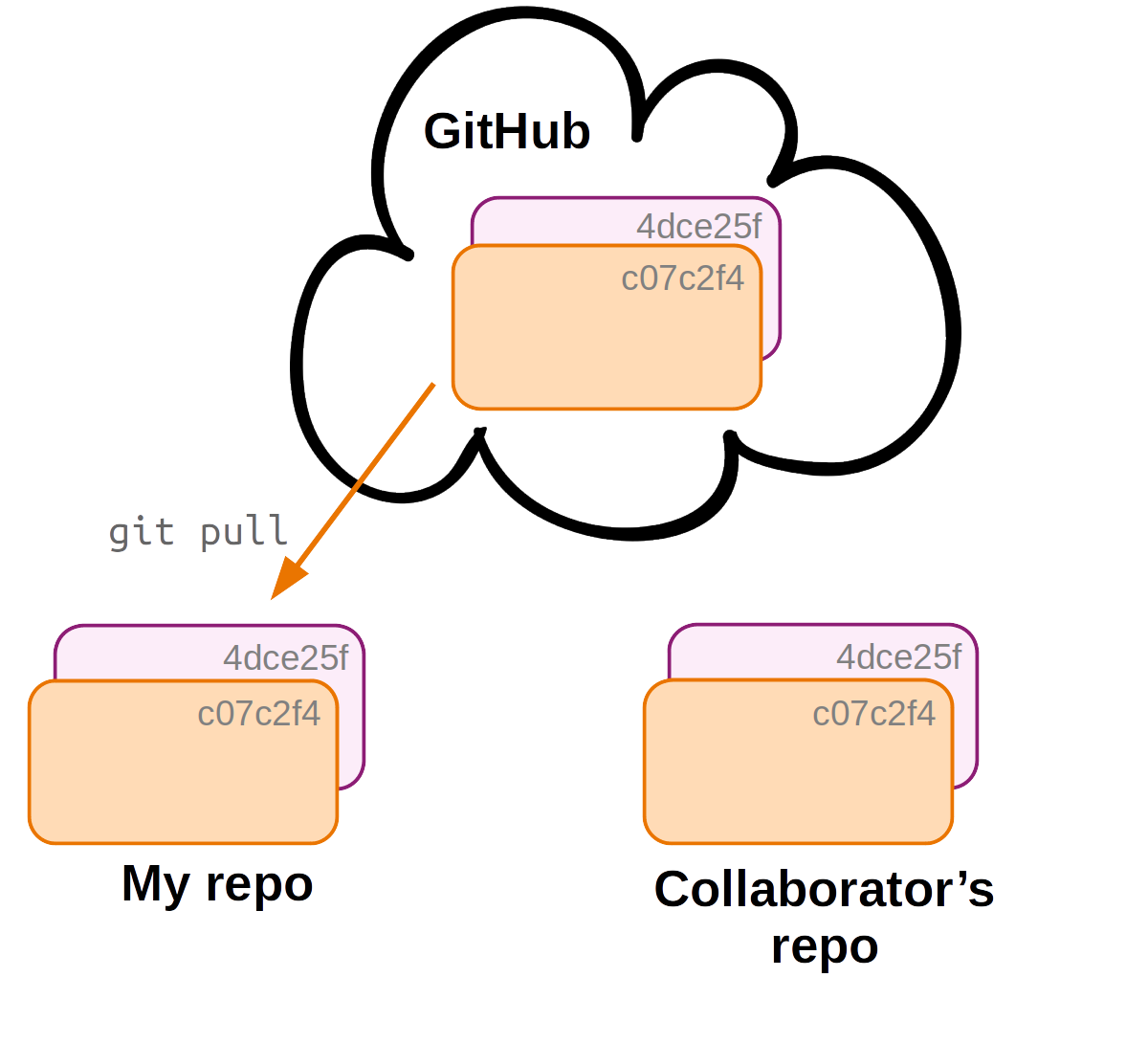

D
To update your local repo with the changes made by your collaborator, you pull in the changes from the remote. Now all 3 copies of the repo are in sync again!

In a multi-user workflow, changes made by different users are shared via the online copy of the repo. But syncing is not automatic:

• Changes to your local repo remain local-only until you push to remote.
• Someone else’s changes to the remote repo do not make it into your local repo until you pull from remote.

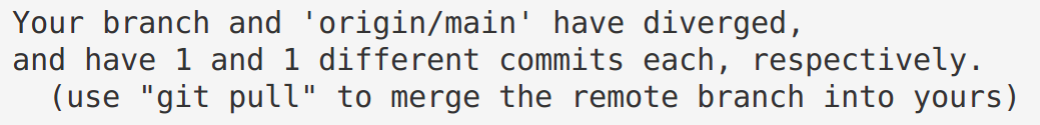

However, when your collaborator has made changes, Git will tell you about “divergence” between your local repository and the remote when you run git status:

# (Don't run this)
git status

In a multi-user workflow, you should use use git pull often, since staying up-to-date with your collaborator’s changes will reduce the chances of merge conflicts.

2.1 Add a collaborator in GitHub

You can add a collaborator to a repository on GitHub as follows:

1. Go to the repository’s settings:

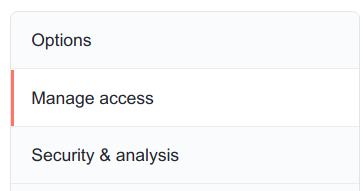

2. Find and click Manage access:

3. Click Invite a collaborator:

2.2 Merge conflicts

A so-called merge conflict means that Git is not able to automatically merge two branches, which occurs when all three of the following conditions are met:

• You try to merge two branches (including when pulling from remote: a pull includes a merge)
• One or more file changes have been committed on both of these branches since their divergence.
• Some of these changes were made in the same part(s) of file(s).

When this occurs, Git has no way of knowing which changes to keep, and it will report a merge conflict as follows:

Resolving a merge conflict

When Git reports a merge conflict, follow these steps:

1. Use git status to find the conflicting file(s).

2. Open and edit those file(s) manually to a version that fixes the conflict (!).

   Note below that Git will have changed these file(s) to add the conflicting lines from both versions of the file, and to add marks that indicate which lines conflict.

   You have to manually change the contents in your text editor to keep the conflicting content that you want, and to remove the indicator marks that Git made.

   On the Origin of Species       # Line preceding conflicting line
   <<<<<<< HEAD                   # GIT MARK 1: Next line = current branch
   Line 2 - from main             # Conflict line: current branch
   =======                        # GIT MARK 2: Dividing line
   Line 2 - from conflict-branch  # Conflict line: incoming branch
   >>>>>>> conflict-branch        # GIT MARK 3: Prev line = incoming branch

3. Use git add to tell Git you’ve resolved the conflict in a particular file:

   git add origin.txt

4. Once all conflicts are resolved, use git status to check that all changes have been staged. Then, use git commit to finish the merge commit:

   git commit -m "Solved the merge conflict"

VS Code functionality for resolving Merge Conflicts

VS Code has some nice functionality to make Step 2 (resolving the conflict) easier:

code <conflicting-file>  # Open the file in VS Code

If you click on “Accept Current Change” or “Accept Incoming Change”, etc., it will keep the desired lines and remove the Git indicator marks. Then, save and exit.

3 Contributing to repositories: Forking & Pull Requests

3.1 What can you do with someone else’s GitHub repository?

In some cases, you may be interested in working in some way with someone else’s repository that you found on GitHub. If you do not have rights to push, you can:

• Clone the repo and make changes locally. When you do this, you can also periodically pull to remain up-to-date with changes in the original repo.
• Fork the repository on GitHub and develop it independently. Forking creates a new personal GitHub repo, to which you can push.
• Using a forked repo, you can also submit a Pull Request with proposed changes to the original repo: for example, if you’ve fixed a bug in someone else’s program.

If you’re actually collaborating on a project, though, you should ask your collaborator to give you admin rights for the repo, which makes things a lot easier than working via Pull Requests.

Forking, Pull Requests, and Issues are GitHub functionality, and not part of Git.

Forking a GitHub repository

You can follow along by e.g. forking my originspecies repo.

• Go to a GitHub repository, and click the “Fork” button in the top-right:

• You may be asked which account to fork to: select your account.
• Now, you have your own version of the repository, and it is labeled explicitly as a fork:

Forking workflow

You can’t directly modify the original repository, but you can:

• First, modify your fork (with local edits and pushing).
• Then, submit a so-called Pull Request to the owner of the original repo to pull in your changes.
• Also, you can also easily keep your fork up-to-date with changes to the original repository.

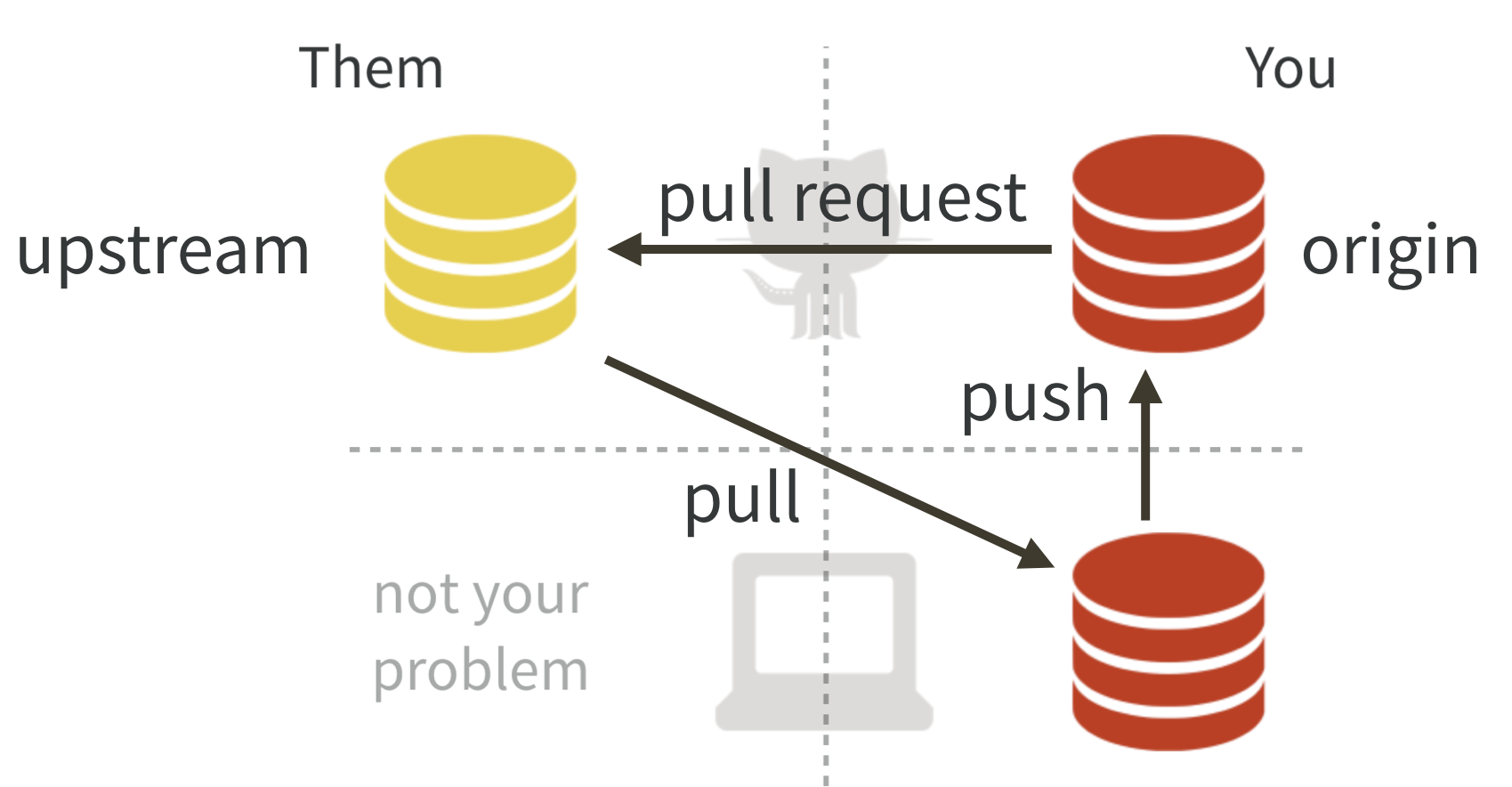

Figure from Happy Git and GitHub for the useR

Editing the forked repository

To clone your forked GitHub repository to a dir at OSC, start by creating a dir there — for example:

mkdir /fs/ess/PAS2880/users/$USER/week03/fork_test
cd /fs/ess/PAS2880/users/$USER/week03/fork_test

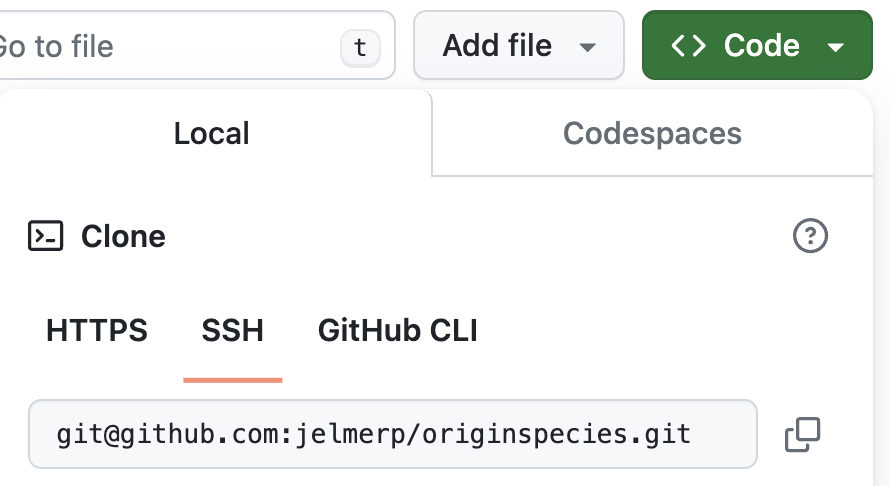

Then, find the URL for your forked GitHub repository by clicking the green Code button. Make sure you get the SSH URL (rather than the HTTPS URL), and click the clipboard button next to the URL to copy it:

Then, type git clone and a space, and paste the URL, e.g.:

git clone git@github.com:jelmerp/originspecies.git

Cloning into 'originspecies'...
remote: Enumerating objects: 31, done.
remote: Counting objects: 100% (31/31), done.
remote: Compressing objects: 100% (19/19), done.
remote: Total 31 (delta 4), reused 30 (delta 3), pack-reused 0
Receiving objects: 100% (31/31), done.
Resolving deltas: 100% (4/4), done.

Now, you can make changes to the repository in the familiar way, for example:

echo "# Chapter 1. Variation under domestication" > origin.txt
git add origin.txt
git commit -m "Suggested title for first chapter."

And note that you can push without any setup — because you cloned the repository, the remote setup is already done (and you have permission to push because its your own repo on GitHub and you have set up GitHub authentication):

git push

Creating a Pull Request

If you then go back to GitHub, you’ll see that your forked repo is “x commit(s) ahead” of the original repo:

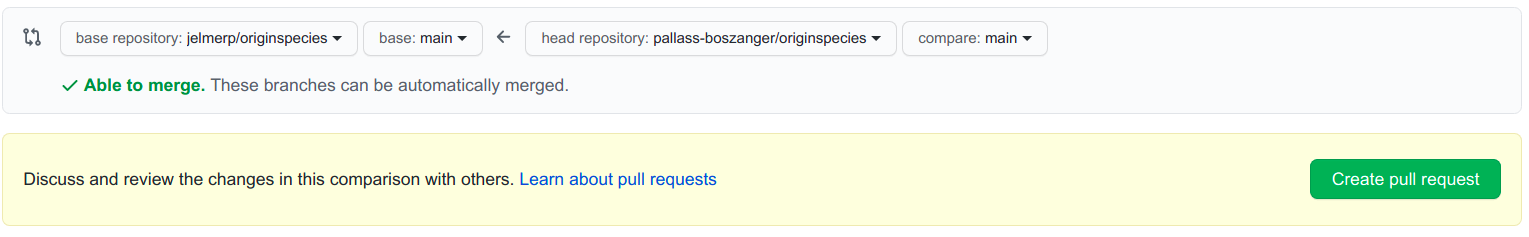

Click Pull request, and check whether the right repositories and branches are being compared (and here you can also see the changes that were made in the commits):

If it looks good, click the green Create Pull Request button:

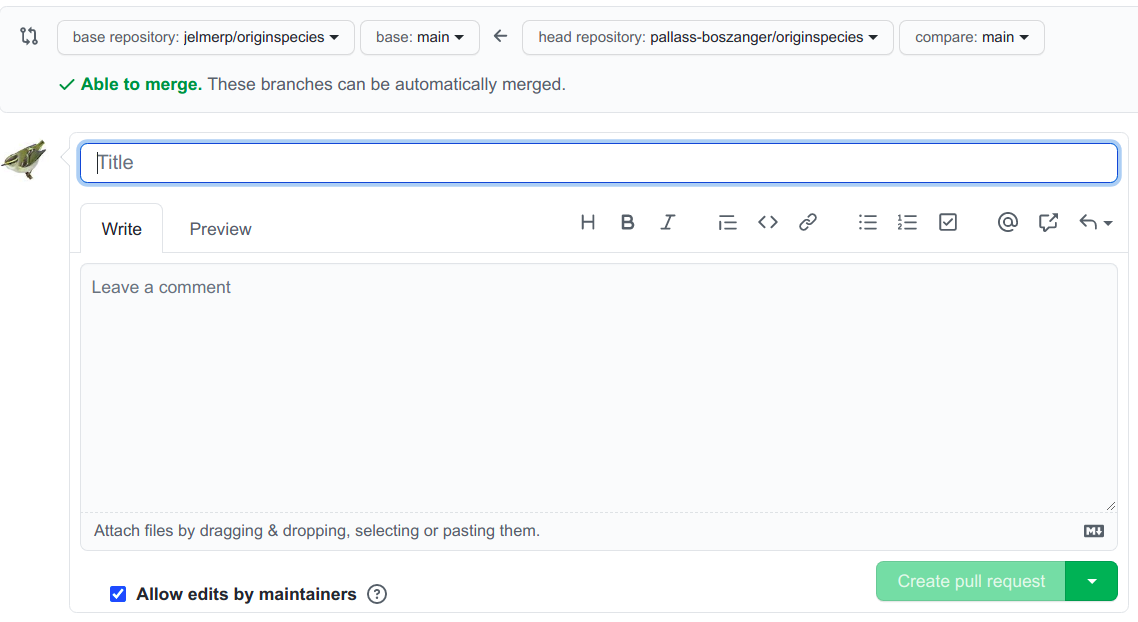

Give your Pull Request a title, and write a brief description of your changes:

Keeping your fork up-to-date

As you saw, you can’t directly push to original repo but instead have to submit a Pull Request (yes, this terminology is confusing!).

But, you can create an ongoing connection to the original repo, which you can use to periodically pull to keep your fork up-to-date. This works similarly to connecting your own GitHub repo, but you should give the remote a different nickname than origin — the convention is upstream:

# Add the "upstream" connection
git remote add upstream git@github.com:jelmerp/originspecies.git

# List the remotes:
git remote -v

origin   git@github.com:pallass-boszanger/originspecies.git  (fetch)
origin   git@github.com:pallass-boszanger/originspecies.git  (push)
upstream   git@github.com:jelmerp/originspecies.git  (fetch)
upstream   git@github.com:jelmerp/originspecies.git  (push)

# Pull from the upstream repository:
git pull upstream main

“Upstream” is an arbitrary but convential name – compare with this “origin” which is used for your own version of the online repo.

4 Undoing (& viewing) changes that have been committed

Whereas in the first Git session, we learned about undoing changes that have not been committed, here you’ll see how you can undo changes that have been committed. We’ll start with some concepts that are helpful in this context.

4.1 The three trees of Git

These three states correspond to the three “trees” of Git:

• HEAD: State of the project in the most recent commit (on the current branch).
• Index (Stage): State of the project ready to be committed.
• Working directory (Working Tree): State of the project as currently on your computer.

---

The three “trees” of Git: HEAD, the index, and the working dir.
The hexadecimals in the Commits rectangles are abbreviated checksums for each commit.

---

Or consider this table for a hypothetical example in which HEAD, the Index, and the working dir all differ with regards to the the version of file 1, and there also is an untracked file in the working dir:

File state	Version	Which tree
Committed	file 1 version X	HEAD
Staged	file 1 version Y	Index (stage)
Modified	file 1 version Z	Working dir
Untracked	file 2 version X	Working dir

4.2 Ways to refer to past commits

To refer to specific past commits, you can:

• Using the hexadecimal checksum (either the full ID or the 7-character abbreviation)
• Use HEAD notation: HEAD is the most recent commit, and there are two ways of indicating ancestors of HEAD:

---

To refer to past commits, you can use checksums (e.g. dab0dc4 for the second-to-last commit)
or HEAD notation (HEAD^^ or HEAD~2 for the second-to-last commit).

For example, using git diff to compare your repo or individual files between any two arbitrary commits:

# Last commit vs second-to-last commit - full repo:
git diff HEAD HEAD^

# Last commit vs a specified commit - specific file:
git diff HEAD d715c54 todo.txt

4.3 Viewing past versions of the repository

Before undoing committed changes, you may want to look at earlier states of your repo, e.g. to know what to revert to:

• First, print an overview of past commits and their messages:

  # (NOTE: example code in this and the next few boxes - don't run as-is)
  git log --oneline

• Find a commit you want to go back to, and look around in the past:

  git checkout <sha-id> # Replace <sha-id> by an actual hash

  less myfile.txt       # Etc. ...

• Then, you can go back to where you were originally as follows:

  git checkout main

The next section will talk about strategies to move your repo back to an earlier state that you found this way.

Just need to retrieve an older version of a single file?

If you just want to retrieve/restore an older version of a single file that you found while browsing around in the past, then a quick way can be: simply copy the file to a location outside of your repo, move yourself back to the “present”, and move the file back into your repo, now in the present.

A visual of using git checkout to view files from older versions of your repo.
Figure from https://software-carpentry.org.

The multiple uses of git checkout

Note the confusing re-use of git checkout! We have now seen git checkout being used to:

• Move between branches
• Move to previous commits to explore (figure below)

4.4 Undoing entire commits

To undo commits, i.e. move the state of your repository back to how it was before the commit you want to undo, there are two main commands:

• git revert: Undo the changes made by commits by reverting them in a new commit.
• git reset: Delete commits as if they were never made.

Undoing commits with git revert

A couple of examples of creating a new commit that will revert all changes made in the specified commit:

# Undo changes by the most recent commit:
git revert HEAD

# Undo changes by the second-to-last commit:
git revert HEAD^

# Undo changes by a commit identified by its checksum:
git revert e1c5739

Undoing commits with git reset

git reset is quite complicated as it has three modes (--hard, --mixed (default), and --soft) and can act either on individual files and on entire commits. To undo a commit, and:

• Stage all changes made by that commit:

  # Resetting to the 2nd-to-last commit (HEAD^) => undoing the last commit
  git reset --soft HEAD^

• Put all changes made by that commit as uncomitted working-dir changes:

  # Note that '--mixed' is the default, so you could omit that
  git reset --mixed HEAD^

• Completely discard all changes made by that commit:

  git reset --hard HEAD^

git reset erases history

Undoing with git revert is much safer than with git reset, because git revert does not erase any history.

For this reason, some argue you should not use git reset on commits altogether. At any rate, you should never use git reset for commits that have already been pushed online.

4.5 Viewing & reverting to earlier versions of files

Above, you learned to undo at a project/commit-wide level. But you can also undo things for specific files:

1. Get a specific version of a file from a past commit:

   # Retrieve the version of README.md from the second-to-last commit
   git checkout HEAD^^ -- README.md

   # Or: Retrieve the version of README.md from a commit IDed by the checksum
   git checkout e1c5739 -- README.md

2. Now, your have the old version in the working dir & staged, which you can optionally check with:

   # Optional: check the file at the earlier state
   cat README.md
   git status

3. You can go on to commit this version from the past, or go back to the current version, as we will do below:

   git checkout HEAD -- README.md

Be careful with git checkout

Be careful with git checkout: any uncommitted changes to this file would be overwritten by the past version you retrieve!

An alternative method to view and revert to older versions of specific files is to use git show.

• View a file from any commit as follows:

  # Retrieve the version of README.md from the last commit
  git show HEAD:README.md

  # Or: Retrieve the version of README.md from a commit IDed by the checksum
  git show ad4ca74:README.md

• Revert a file to a previous version:

  git show ad4ca74:README.md > README.md

5 Branching & merging

In this section, you’ll learn about using so-called “branches” in Git. Branches are basically parallel versions of your repository, which allow you or your collaborators to experiment or create variants without affecting existing functionality or others’ work.

5.1 A repo with a couple of commits

First, you’ll create a dummy repo with a few commits by running a script:

cd /fs/ess/PAS2880/users/$USER
git clone https://github.com/CSB-book/CSB.git
cd CSB/git/sandbox

Take a look at the script you will run to create your repo:

cat ../data/create_repository.sh

#!/bin/bash

# function of the script:
# sets up a repository and
# immitates workflow of
# creating and commiting two text files

mkdir branching_example
cd branching_example
git init
echo "Some great code here" > code.txt
git add .
git commit -m "Code ready"
echo "If everything would be that easy!" > manuscript.txt
git add .
git commit -m "Drafted paper"

Run the script:

bash ../data/create_repository.sh

Initialized empty Git repository in /fs/ess/PAS2880/users/jelmer/CSB/git/sandbox/branching_example/.git/
[main (root-commit) 3c59d8a] Code ready
 1 file changed, 1 insertion(+)
 create mode 100644 code.txt
[main 7ba8ca4] Drafted paper
 1 file changed, 1 insertion(+)
 create mode 100644 manuscript.txt

And move into the repository’s dir:

cd branching_example

Let’s see what has been done in this repo:

git log --oneline

7ba8ca4 (HEAD -> main) Drafted paper
3c59d8a Code ready

We will later modify the file code.txt — let’s see what it contains now:

cat code.txt

Some great code here

5.2 Using branches in Git

You now want to improve the code, but these changes are experimental, and you want to retain your previous version that you know works. This is where branching comes in. With a new branch, you can make changes that don’t affect the main branch, and can also keep working on the main branch:

Figure modified after Allesina (2019).
(Note that the main branch is here called “master”.)

Creating a new branch

First, create a new branch as follows, naming it fastercode:

git branch fastercode

List the branches:

# Without args, git branch will list the branches
git branch

  fastercode
* main

It turns out that you created a new branch but are still on the main branch, as the * indicates.

You can switch branches with git checkout:

git checkout fastercode

Switched to branch 'fastercode'

And confirm your switch with git branch:

git branch

* fastercode
  main

Note that you can also tell from the git status output on which branch you are:

git status

On branch fastercode
nothing to commit, working tree clean

Making experimental changes on the new branch

You edit the code, stage and commit the changes:

echo "Yeah, faster code" >> code.txt
cat code.txt

Some great code here
Yeah, faster code

git add code.txt
git commit -m "Managed to make code faster"

[fastercode 21f1828] Managed to make code faster
 1 file changed, 1 insertion(+)

Let’s check the log again, which tells you that the last commit was made on the fastercode branch:

git log --oneline

21f1828 (HEAD -> fastercode) Managed to make code faster
7ba8ca4 (main) Drafted paper
3c59d8a Code ready

Moving back to the main branch

You need to switch gears and add references to the paper draft. Since this has nothing to do with your attempt at faster code, you should make these changes back on the main branch:

# Move back to the 'main' branch
git checkout main

Switched to branch 'main'

What does code.txt, which we edited on fastercode, now look like?

cat code.txt

Some great code here

So, by switching between branches, your working dir contents has changed!

Now, while still on the main branch, add the reference, stage and commit:

echo "Marra et al. 2014" > references.txt
git add references.txt
git commit -m "Fixed the references"

[main 1bf123f] Fixed the references
 1 file changed, 1 insertion(+)
 create mode 100644 references.txt

Now that you’ve made changes to both branches, let’s see the log in “graph” format with --graph, also listing all branches with --all — note how it tries to depict these branches:

git log --oneline --graph --all

* 1bf123f (HEAD -> main) Fixed the references
| * 21f1828 (fastercode) Managed to make code faster
|/
* 7ba8ca4 Drafted paper
* 3c59d8a Code ready

Finishing up on the experimental branch

Earlier, you finished speeding up the code in the fastercode branch, but you still need to document your changes. So, you go back:

git checkout fastercode

Switched to branch 'fastercode'

Do you still have the references.txt file from the main branch?

ls

code.txt  manuscript.txt

Nope, your working dir has changed again.

Then, add the “documentation” to the code, and stage and commit:

echo "# My documentation" >> code.txt
git add code.txt
git commit -m "Added comments to the code"

[fastercode d09f611] Added comments to the code
 1 file changed, 1 insertion(+)

Check the log graph:

git log --oneline --all --graph

* d09f611 (HEAD -> fastercode) Added comments to the code
* 21f1828 Managed to make code faster
| * 1bf123f (main) Fixed the references
|/
* 7ba8ca4 Drafted paper
* 3c59d8a Code ready

Merging the branches

You’re happy with the changes to the code, and want to make the fastercode version the default version of the code. This means you should merge the fastercode branch back into main. To do so, you first have to move back to main:

git checkout main

Switched to branch 'main'

Now you are ready to merge with the git merge command. You’ll also have to provide a commit message, because a merge is always accompanied by a commit:

git merge fastercode -m "Much faster version of code"

Merge made by the 'ort' strategy.
 code.txt | 2 ++
 1 file changed, 2 insertions(+)

Once again, check the log graph, which depicts the branches coming back together:

git log --oneline --all --graph

*   5bb84cd (HEAD -> main) Much faster version of code
|\
| * d09f611 (fastercode) Added comments to the code
| * 21f1828 Managed to make code faster
* | 1bf123f Fixed the references
|/
* 7ba8ca4 Drafted paper
* 3c59d8a Code ready

Cleaning up

You no longer need the fastercode branch, so you can delete it as follows:

git branch -d fastercode

Deleted branch fastercode (was d09f611).

5.3 Branching and merging – Workflow summary

Figure from Allesina (2019)

Overview of commands used in the branching workflow

# (NOTE: Don't run this)

# Create a new branch:
git branch mybranch

# Move to new branch:
git checkout mybranch

# Add and commit changes:
git add --all
git commit -m "my message"

# Done with branch - move back to main trunk and merge
git checkout main
git merge mybranch -m "Message for merge"

# And [optionally] delete the branch:
git -d mybranch

Exercise (CSB Intermezzo 2.2)

• (a) Move to the directory CSB/git/sandbox.

Solution

cd /fs/ess/PAS2880/users/$USER/CSB/git/sandbox

• (b) Create a directory thesis and turn it into a Git repository.

Solution

mkdir thesis
cd thesis
git init

• (c) Create the file introduction.txt with the line “Best introduction ever.”

Solution

echo "The best introduction ever" > introduction.txt

• (d) Stage introduction.txt and commit with the message “Started introduction.”

Solution

git add introduction.txt
git commit -m "Started introduction"

---

• (e) Create the branch newintro and change into it.

Solution

git branch newintro
git checkout newintro

• (f) Overwrite the contents of introduction.txt, create a new file methods.txt, stage, and commit.

Solution

echo "A much better introduction" > introduction.txt
touch methods.txt
git add --all
git commit -m "A new introduction and methods file"

• (g) Move back to main. What does your working directory look like now?

Solution

git checkout main
ls     # Changes made on the other branch are not visible here!
cat introduction.txt

• (h) Merge in the newintro branch, and confirm that the changes you made there are now in your working dir.

Solution

git merge newintro -m "New introduction"
ls
cat introduction.txt

• (i) Bonus: Delete the branch newintro.

Solution

git branch -d newintro

6 Miscellaneous Git

6.1 Amending commits

Let’s say you forgot to add a file to a commit, or notice a silly typo in something we just committed. Creating a separate commit for this seems “wasteful” or even confusing, and including these changes along with others in a next commit is also likely to be inappropriate. In such cases, you can amend the previous commit.

First, stage the forgotten or fixed file:

# (NOTE: don't run this)
git add myfile.txt

Then, amend the commit, adding --no-edit to indicate that you do not want change the commit message:

# (NOTE: don't run this)
git commit --amend --no-edit

Amending commits is a way of “changing history”

Because amending a commit “changes history”, some recommend avoiding this altogether. For sure, do not amend commits that have been published in (pushed to) the online counterpart of the repo.

6.2 git stash

Git stash can be useful when you need to pull from the remote, but have changes in your working dir that:

• Are not appropriate for a separate commit
• Are not worth starting a new branch for

Here is an example of the sequence of commands you can use in such cases.

1. Stash changes to tracked files with git stash:

   # (Note: add option '-u' if you need to include untracked files)
   git stash

2. Pull from the remote repository:

   git pull

3. “Apply” (recover) the stashed changes back to your working dir:

   git stash apply

6.3 Tags

If you have a repo with general scripts, which you continue to develop and use in multiple projects, and you publish a paper in which you use these scripts, it is a good idea to add a “tag” to a commit to mark the version of the scripts used in your analysis:

git tag -a v1.2.0 -m "Clever release title"
git push --follow-tags

6.4 A few more tips

• Git will not pay attention to empty directories in your working dir.

• You can create a new branch and move to it in one go using:

  git checkout -b <new-branch-name>

• To show commits in which a specific file was changed, you can simply use:

  git log <filename>

• “Aliases” (command shortcuts) can be useful with Git, and can be added in two ways:

  • By adding lines like the below to the ~/.gitconfig file:

    [alias]
      hist = log --graph --pretty=format:'%h %ad | %s%d [%an]' --date=short
      last = log -1 HEAD  # Just show the last commit

  • With the git config command:

    git config --global alias.last "log -1 HEAD"

References

Allesina, Stefano. 2019. Computing Skills for Biologists: A Toolbox. Princeton, NJ: Princeton University Press,. https://doi.org/10.1515/9780691183961.
